High Airflow 380V Silent Axial Fan - IP66 Waterproof Industrial Ventilation Solution

High Airflow 380V Silent Axial Fan - IP66 Waterproof Industrial Ventilation Solution

Inquiry
  • Overview
  • Inquiry
  • Related Products
High Airflow 380V Silent Axial Fan - IP66 Waterproof Industrial Ventilation Solution
High Airflow 380V Silent Axial Fan - IP66 Waterproof Industrial Ventilation Solution
High Airflow 380V Silent Axial Fan - IP66 Waterproof Industrial Ventilation Solution
High Airflow 380V Silent Axial Fan - IP66 Waterproof Industrial Ventilation Solution
High Airflow 380V Silent Axial Fan - IP66 Waterproof Industrial Ventilation Solution
High Airflow 380V Silent Axial Fan - IP66 Waterproof Industrial Ventilation Solution
High Airflow 380V Silent Axial Fan - IP66 Waterproof Industrial Ventilation Solution
High Airflow 380V Silent Axial Fan - IP66 Waterproof Industrial Ventilation Solution
High Airflow 380V Silent Axial Fan - IP66 Waterproof Industrial Ventilation Solution
High Airflow 380V Silent Axial Fan - IP66 Waterproof Industrial Ventilation Solution
High Airflow 380V Silent Axial Fan - IP66 Waterproof Industrial Ventilation Solution
High Airflow 380V Silent Axial Fan - IP66 Waterproof Industrial Ventilation Solution
Products Description of Axial Fan

Axial fan are widely used in Agriculture and industry ventilation and cooling .It is mainly used for air conditioning system, cooling tower, radiator, livestock industry.
Specification
product high airflow 380v silent axial fan ip66 waterproof industrial ventilation solution-2
product high airflow 380v silent axial fan ip66 waterproof industrial ventilation solution-3
Model
Rotational Speed (RPM)
Air flow（CMH)
Power(kW)
Voltage（V）
Static pressure（pa）
Frequency（Hz）

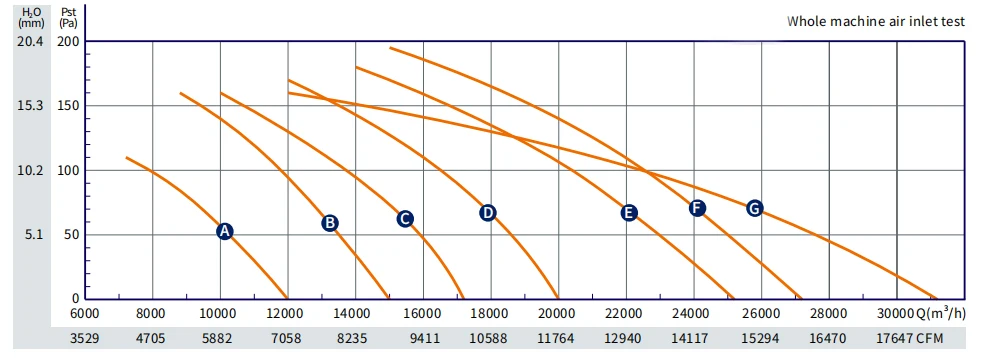

Curve
NTA710-6
950
13000
0.75
380
150
50
B
NTA760-6
950
15500
0.9
380
160
50
C
NTA800-6
960
18000
1.1
380
170
50
D
NTA850-6
960
22000
1.5
380
180
50
E
NTA900-6
960
23500
1.8
380
190
50
F
NTA1000-8
715
25000
1.8
380
150
50
G
product high airflow 380v silent axial fan ip66 waterproof industrial ventilation solution-4
Product Description
MATERIAL AND WORKING CHARACTERISTICS
• Motor casing: High quality aluminum alloy/electrophoretic coating
• Blade: High quality aluminum alloy/electrophoretic (can be matched with high-strength and lightweight composite materials)
• Wheel hub: galvanized plate wheel hub+electrostatic spraying/electrophoresis
• Air duct: galvanized sheet+electrostatic spraying/electrophoresis
• Mesh cover: high-quality steel wire+electrostatic spraying/electrophoresis
• Humidity: ≤ 98%
• Insulation level: H
• Protection level: IP66
• Work system: S1
• Altitude: ≤ 1000m
• Applicable environment:- 40℃ ~+60℃
• Distance between fan and radiator ≥ 0.3 times the outer diameter of the impeller
• Fan inlet distance ≥ impeller outer diameter
• Fan outlet distance ≥ 1.5 times the outer diameter of the impeller
APPLICATION FIELD

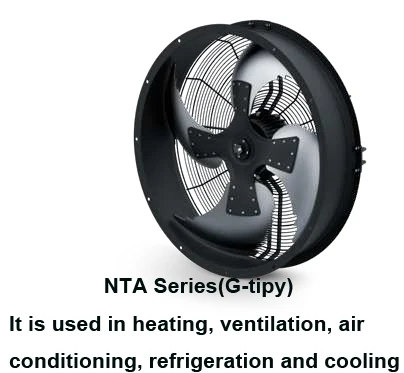

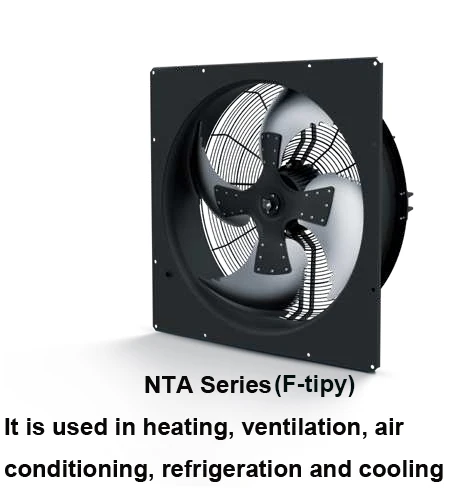

The NTA/TZA series silent axial flow fans are widely used in heating, ventilation, air conditioning, cooling and other fields. According to the structure and purpose of different devices, the following fixing methods can be provided: square panel fixing (F-type), circular duct fixing (G-type), and square panel ixing with swing blades at the front end (FB type); Adapt to various complex work environment requirements.
Detailed Photos

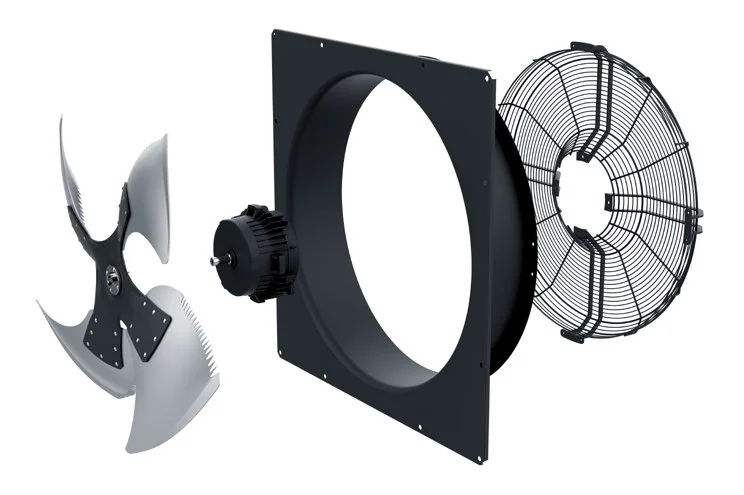

product high airflow 380v silent axial fan ip66 waterproof industrial ventilation solution-5


SILENT DESIGN
The wind blade design adopts a curved swept toothed tail wing, combined with bionics and aerodynamic principles, effectively cutting and combing the airlow, thereby reducing noise.

TWO MOTOR SCHEMES
NTA(AC): Adopting AC asynchronous motor

Protection method: with thermal protection


PROTECTIVE PERFORMANCE
The motor protection level is IP66, and the mesh cover prevents external foreign objects from entering, improving the reliability and service life of the fan.

DIRECT INSTALLATION
The motor is directly connected to the fan blades, reducing energy loss in the transmission process and improving efficiency. More compact structure and easier installation.

Variable pole dual speed: 6/4,8/6,10/8,12/8

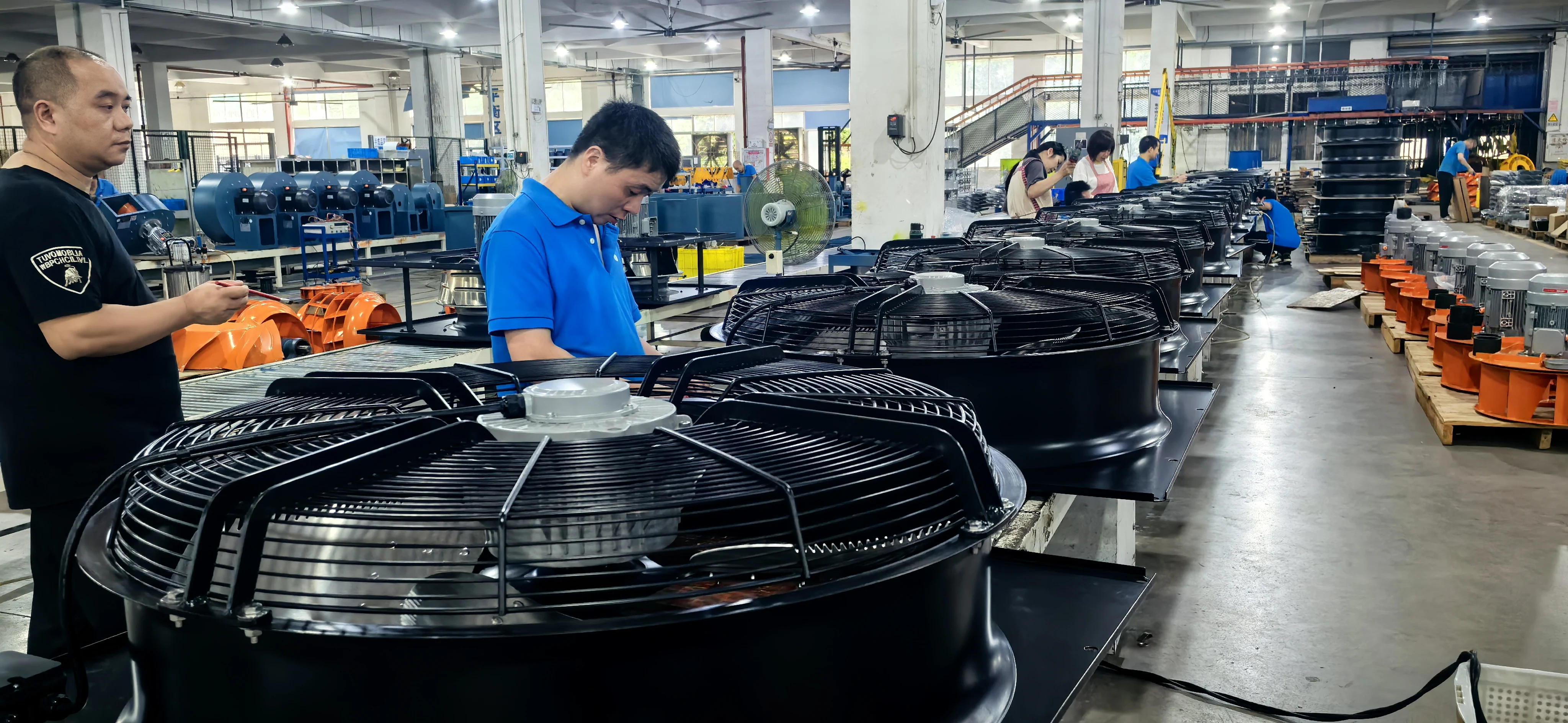

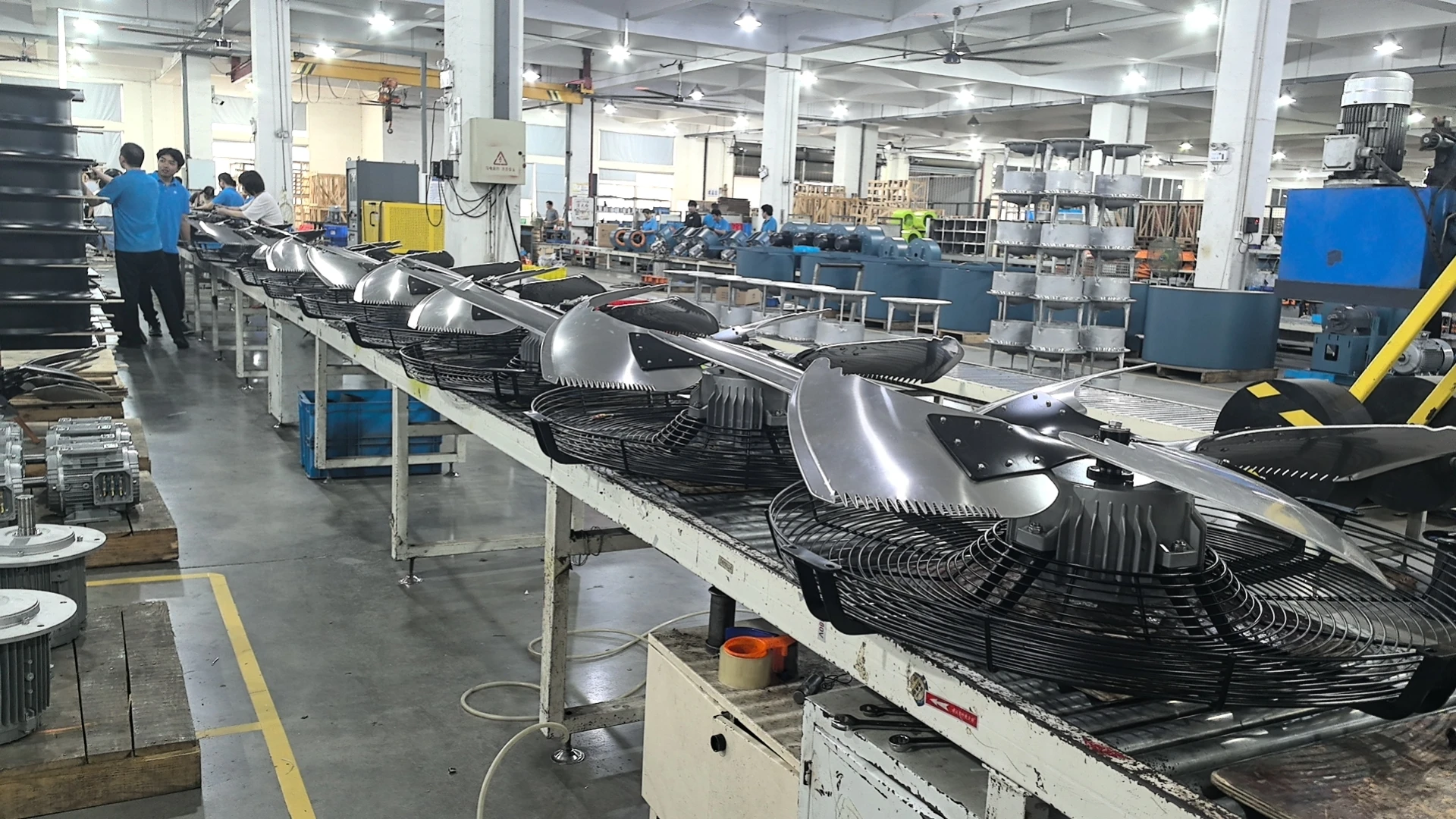

Production Line
product high airflow 380v silent axial fan ip66 waterproof industrial ventilation solution-6
product high airflow 380v silent axial fan ip66 waterproof industrial ventilation solution-7

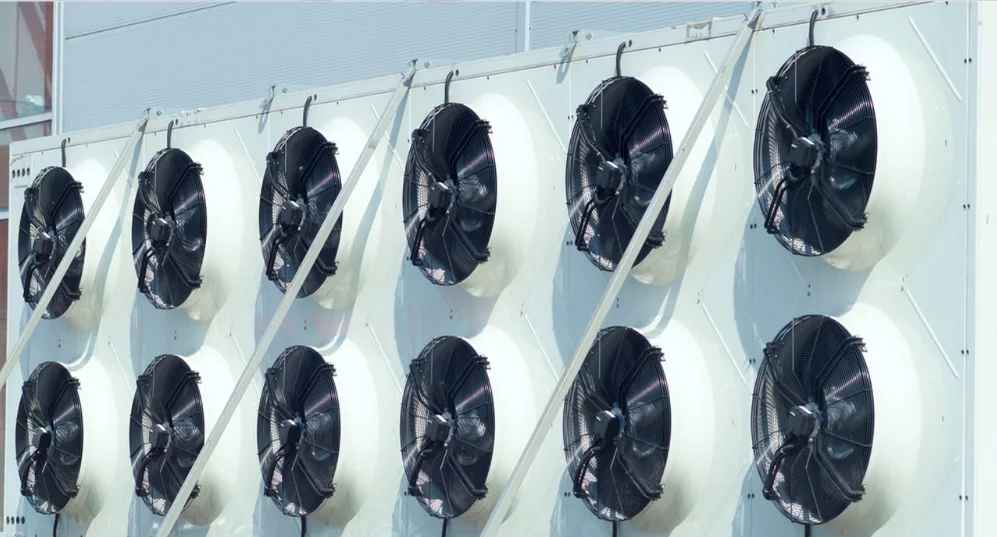

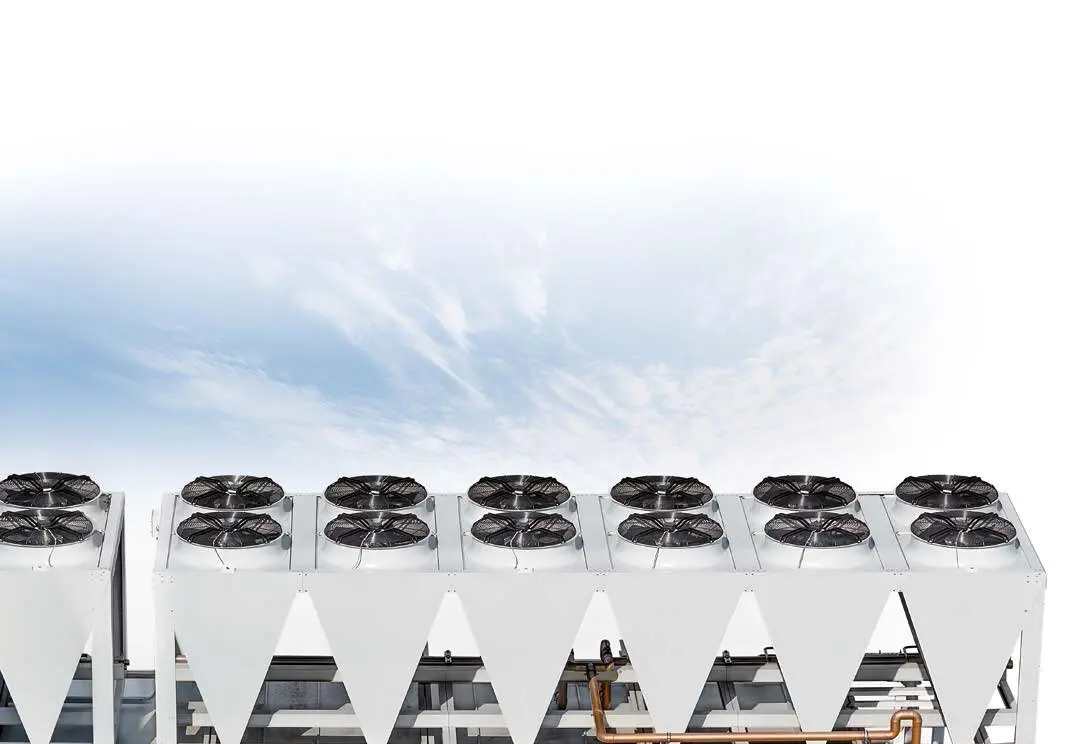

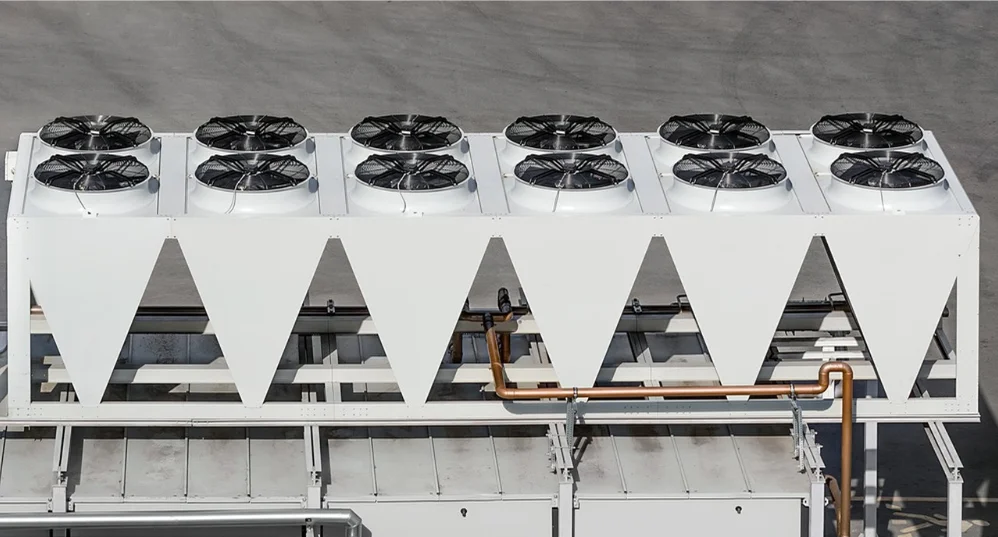

Application Cases
product high airflow 380v silent axial fan ip66 waterproof industrial ventilation solution-8
product high airflow 380v silent axial fan ip66 waterproof industrial ventilation solution-9
Company Profile
product high airflow 380v silent axial fan ip66 waterproof industrial ventilation solution-10
FJDIAMOND is a leading high-tech enterprise specializing in the research, development, production, and sales of heating,ventilation and energy-saving cooling solutions. Committed to sustainability and cost-effective climate control, we focus on providing advanced ventilation facilities and air conditioning equipment to deliver strong and environmentally friendly heating,ventilation, and cooling effects for residential, commercial, and industrial premises.

Our axial flow fans adopt an innovative airfoil blade design and low-noise, space-saving motor technology, ensuring smooth and powerful airflow delivery, extremely low operating noise, and higher energy efficiency ratio. These systems are particularly suitable for places requiring continuous quiet ventilation, with significant optimization in energy consumption and noise levels compared to traditional ventilation solutions.

As part of our global vision, FJDIAMOND is expanding its service network to over 80 countries, offering professional pre-sales consultations, reliable after-sales support, and localized technical assistance. We uphold the highest standards of quality and customer satisfaction, guided by our core principle: "Quality Assurance and Owners' Satisfaction."
